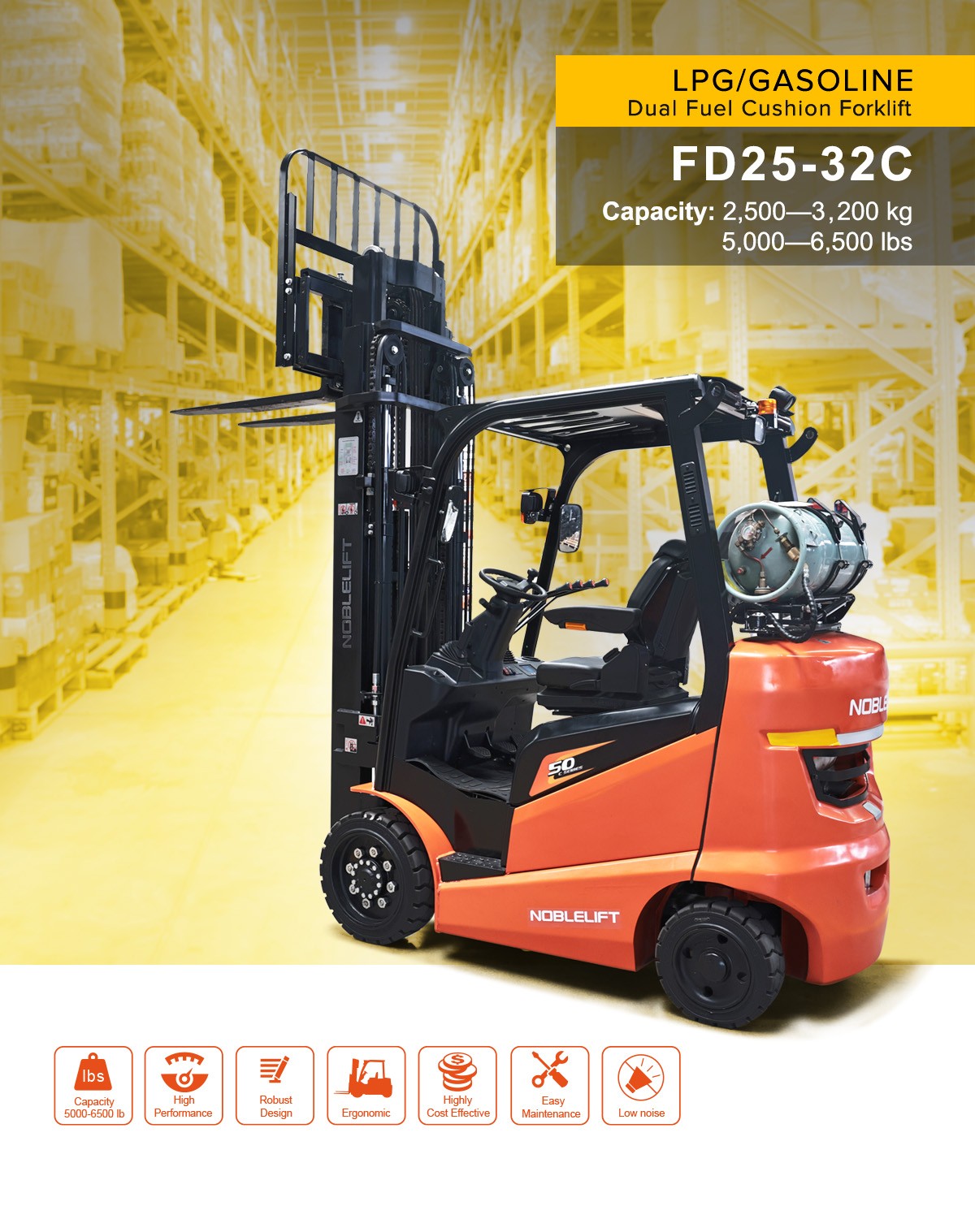

| Model | FD25C | FD30C | FD32C | |
| Maxload Capacity | kg / lbs | 2270 / 5000 | 2720 / 6000 | 2950 / 6500 |
| Service weight incl. engine | kg / lbs | 3849 / 8468 | 4371 / 9616 | 4507 / 9915 |
| Fork dimensions (s/e/l) | mm (in) | 40/120/1070 (1.6/4.7/42.1) | 45/122/1070 (1.8/4.8/42.1) | |
| Free Lift | mm / in | 110 / 4.3 | 115 / 4.5 | |
| Overall length | mm / in | 3394 / 133.6 | 3481 / 137 | |
| Overall width | mm / in | 1080 / 42.5 | 1121 / 44.1 | |
| Turning radius | mm / in | 1990 / 78.3 | 2070 / 81.5 | |
| Gradeability (Laden) | % | 28.9 | 24.7 | 24 |
| Max.Travel Speed (Laden) | Km/h (mph) | 9.3 (15.0) | 9.3 (15.0) | 9.0(14.5) |
